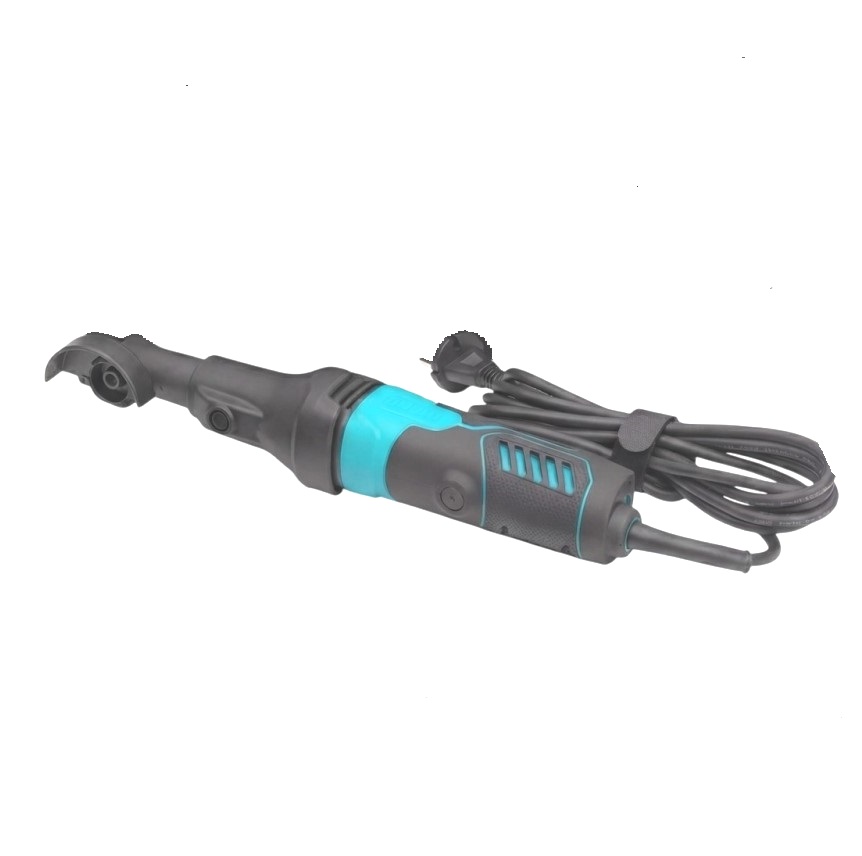

BIHUI Corner engraver, 100W AGMN100 – 4500 UAH
BIHUI Corner engraver, 100W AGMN100 plus – 5250 UAH

Behai, one of the leaders of the tile tool has released its corner engraver. This tool was designed specifically for tilers and tilers. It is designed to work where a regular grinder will not fit. BUT THE ENGRAVER DOES NOT REPLACE THE BULGARIAN GRINDER, BUT SUPPLEMENTS IT.
Advantages of the BIHUI Corner, 100W AGMN100 corner engraver
– enough power to cut porcelain stoneware 12 mm thick;
– there is a clamp for quick and convenient replacement of discs;
– there is speed adjustment for a different range of uses of the engraver;
– there is an adapter for convenient mounting of the disc and the shell pad;
– there is a collet for mounting cutters – drills;
– rubberized body for comfort;
– convenient protective covers included;
– sufficient equipment to start work;
– super case.

What the angle engraver can do:
Neatly trim edges without any chipping
Boring and finishing holes in porcelain stoneware
Work in hard-to-reach places and corners
Transparent plastic casing for 100% control of the cut

100 W motor
Smooth adjustment with the wheel allows you to choose one of 6 modes:
Speed ​​5000 – 19500 rpm
Polishing stone
Versatility

In addition to porcelain stoneware, the engraver easily copes with stone, glass, metal, wood and plastic. Ideal for grinding and delicate polishing.

Quick change system of equipment
Reliable plastic casing for protection during work
Delicate polishing and chamfering
Ergonomic grip, eliminating hand fatigue

The BIHUI engraver set can be in two versions:

Engraver
BIHUI VAC diamond disc for engraver, 50x1mm (AGMBV50)
Caliper/Holder for grinding AGSHK BIHUI 50 mm (AGMPH2)
Holder of mini-discs Bihui (shank 6mm)
AGSHK for engraver BIHUI #100, 50 mm, for dry grinding (AGMPD2)
Spare brushes
Tools for installing equipment
Box

More expensive set:
Engraver
BIHUI VAC diamond disc for engraver, 50x1mm (AGMBV50)
BIHUI LAC diamond disc for engraver, 45×0.6mm (AGMBS45)
Support/Holder for grinding AGSHK BIHUI 50 mm (AGMPH2)
Holder for mini-discs Bihui (shank 6mm)
AGSHK for engraver BIHUI #100, 50 mm, for dry grinding (AGMPD2)
Diamond needle (milling cutter) for engraver BIHUI 1.2 mm (AGMGR12)
Spare brushes and tools for installing equipment
Reliable fabric case with a rigid frame for transportation

Technical specifications
Motor power 100 W
Voltage 220 V, 50 Hz
Maximum speed 19,500 rpm
Speed ​​regulation 6 speeds
Length of power cable 3 m
Weight 1150 g

Made in China
