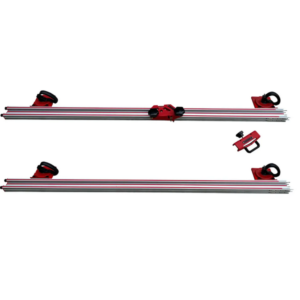

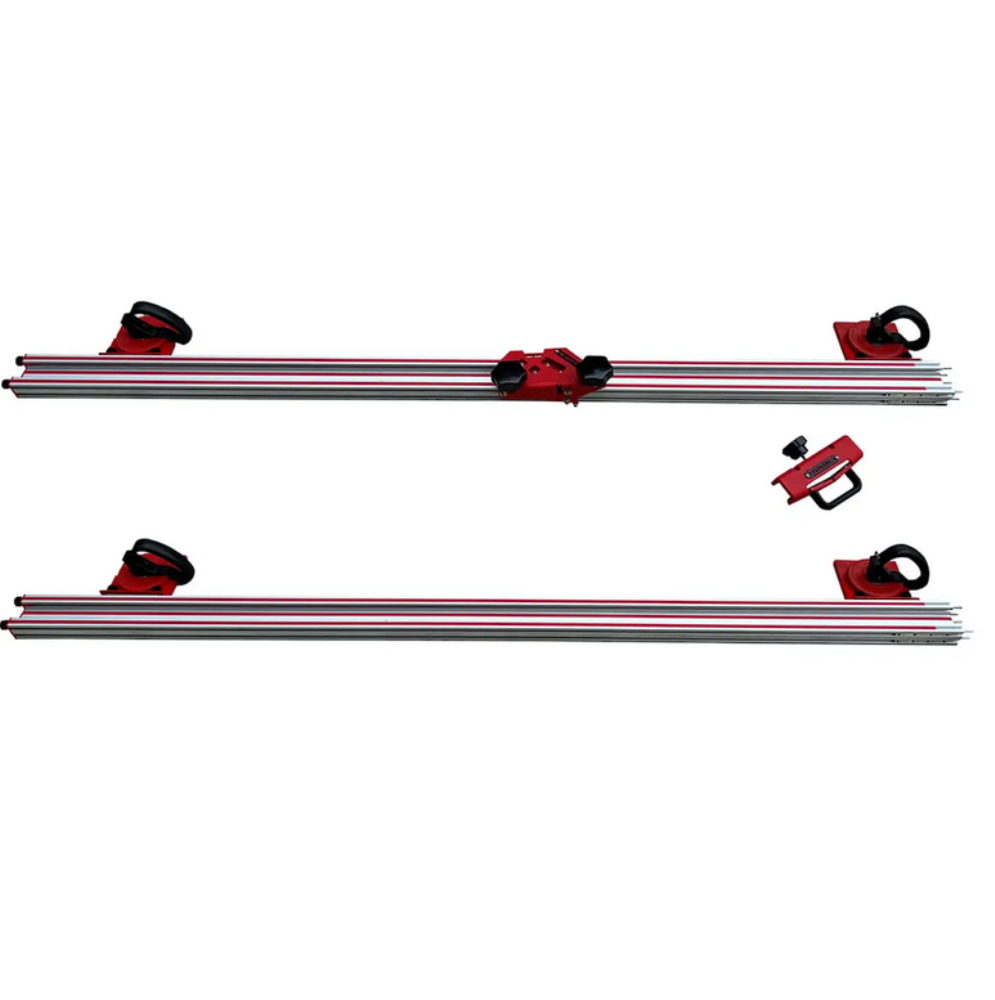

Large format tile cutter V.GRAN 3200 mm
The V.GRAN manual cutting system is designed to work with large-format thin materials, such as kerlite or porcelain stoneware, with a thickness of 3 to 12 mm and a length of up to 3600 mm. The ideal choice for professionals working with large-sized tiles, guaranteeing high accuracy and comfort during use.

Main characteristics:

Cutting length: 3600 mm (2 guides of 1800 mm each)
Maximum tile thickness: 12 mm
Cutting roller size: 12 mm (Sigma)
Drive system: Guide rails (2 pcs. of 1800 mm each)
Weight: 15 kg
Manufacturer: V.GRAN (Ukraine)

Description:

Guide rails:
The system consists of two aluminum guides of 1800 mm each, which ensure accurate and even cutting of large-format tiles. The guides are made of durable aluminum, which guarantees durability and resistance to damage.

Carriage with cutting element:
The cutting roller with a diameter of 12 mm from the famous Italian brand Sigma, made of high-quality material, allows you to make precise and even cuts even on hard tiles.

Vacuum suction cups:
Four Italian Siri suction cups ensure reliable fixation of the guides on the tile, preventing them from shifting during work. The suction cups are suitable even for rough or uneven surfaces.

Guide connection system:
High-quality connecting elements guarantee a reliable connection of the guides, ensuring stability when working with long tiles.

Breaker for breaking:
A special breaker for precise and even breaking of the tile after making a cut.

Advantages:

Cutting accuracy:
Thanks to vacuum suction cups and strong guides, the system guarantees perfect cutting accuracy, even when working with large-sized tiles.

Versatility:
Suitable for working with various materials up to 8 mm thick, including kerlite and porcelain stoneware.

Durability and reliability:
Aluminum guides ensure a long service life, and the carriage with a cutting roller guarantees high-quality cutting of tiles of varying complexity.

Ease of use:
The lightweight design and reliable fixation of the guides with suction cups ensure comfort during work.

Purpose:

The V.GRAN system is ideal for professional use, ensuring precise cutting of large-format tiles. It is an ideal tool for craftsmen working with thin, large-sized materials such as kerlite and porcelain stoneware, due to its reliability and accuracy. The system offers convenience, versatility and durability, making it an excellent choice for professionals working with large tiles.
Features
Technical specifications
Weight 15
Cutting length, mm 3200
Maximum cutting depth 8 mm
Condition New

Made in Ukraine
